IC Tray plastics

IC Tray plastics

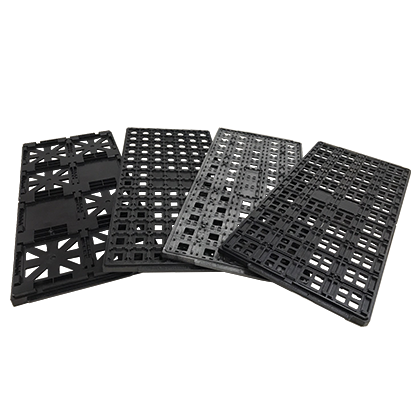

Application-Conductive IC Tray
Product Name : IC Tray plastics
Product Description

Product Introduction

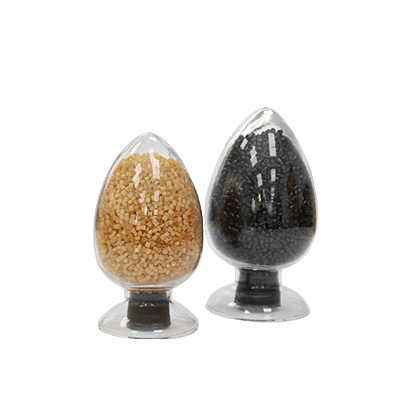

This product is the material for IC Trays, which are manufactured by the injection molding process. This product provides permanent antistatic function, excellent dimensional stability and high temperature resistance. This product is the most suitable for packaging of electronics.

  1. Good conductivity
  2. Good dimensional stability
  3. High mechanical strength
  4. High temperature resistance
TypeSurface Resistivity(Ω/□)Heat Deflection
Temperature (℃)		PropertyMolding Process
MPPE/CB 103-9 150℃
160℃		 Even Shrinkage
Easy molding		 Injection
MPPE/CF 103-9 160℃ High mechanical strength
Good cleanliness
MPPE/CNT 103-9 150℃ Easy molding
Excellent cleanliness
MPPE/GF 103-9 160℃ High mechanical strength
Economical
PP/CB 103-6 125℃ Easy molding
Economical
PES/CF 103-6 170℃
180℃		 Chemical resistance
High mechanical strength
Good cleanliness

*MPPE also known as MPPO

*Minimum Order Quantity：1 Ton / order (except product development)
