Carrier Tapes

    GP-9080C
    GP-9050C
    GP-9050C-C
    Application-Carrier Tape
    Product Name : Carrier Tapes
    Product Description

    Product Introduction

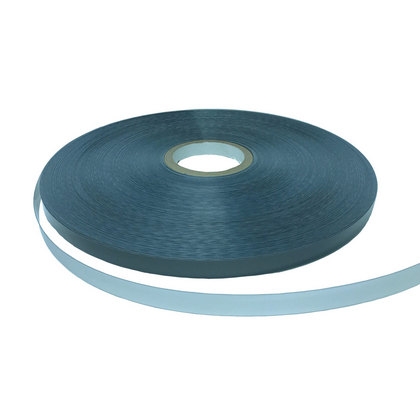

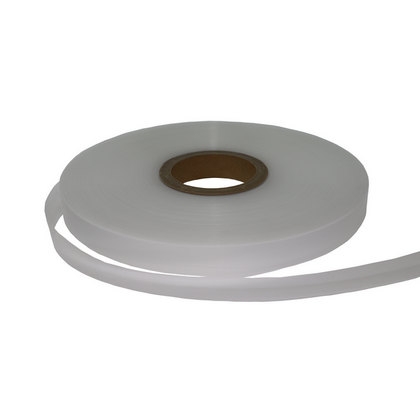

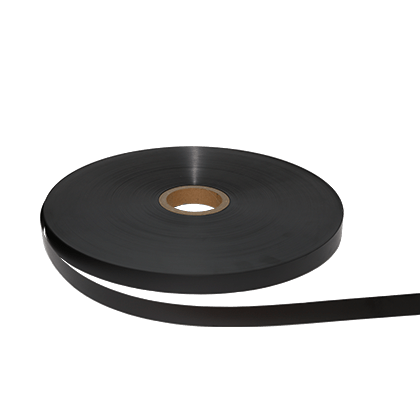

    Carrier tapes are used as packaging for electronic components. It provides Electrostatic Discharge (ESD) protection for sensitive electronic components. Perco provides black and Transparent Carrier tapes.

    1. Suitable for heat-sealed or self-adhesive cover tapes.
    2. Glossy or matte molding.
    3. Permanent ESD protection, regardless of humidity or temperature.
    4. High mechanical strength, easy forming, deep-pocket forming ability.
    5. No carbon Fall-off.
    6. Met EIA 481 standard.
    • Base material : PS series, MBS series
    • Width : 12~740mm
    • Thickness : 0.3~0.5mm
    • Length : 400M
    Physical property MethodUnit GP-9080C GP-9050C GP-9050C-C
    Appearance Observe   black transparent transparent, light gray
    Surface Resistivity ASTM D257 Ω/□ 104-7  －  105-8
    Tensile strength ASTM D882 kgf/cm2  ≧230 ≧370  ≧360
    Elongation ASTM D882 % ≧40 ≧10  ≧15
